Magnum - Industrial Ride on Floor Sweeper
The completely hydraulic Magnum is productive and durable, delivering enhanced driving comfort and increased value for money. This ride on floor sweeper is equipped with a high performance house filtration system, ensuring optimum sweeping results even in the toughest environments. All specifications have been carefully designed in order to satisfy both our goals and the most relevant cleaning needs of our customers:
- STRENGTH The carefully selected materials, robust quality controls and the compact design guarantee strength and reliability.
- POWER The hydraulic traction ensures powerful drive, up to 12 km/h.
- MANEUVERABILITY The Magnum is particularly compact for maximum maneuverability in narrow spaces.
- EASE OF USE all controls are simple and clearly marked.
- ERGONOMICS All controls are designed with the operator in mind.

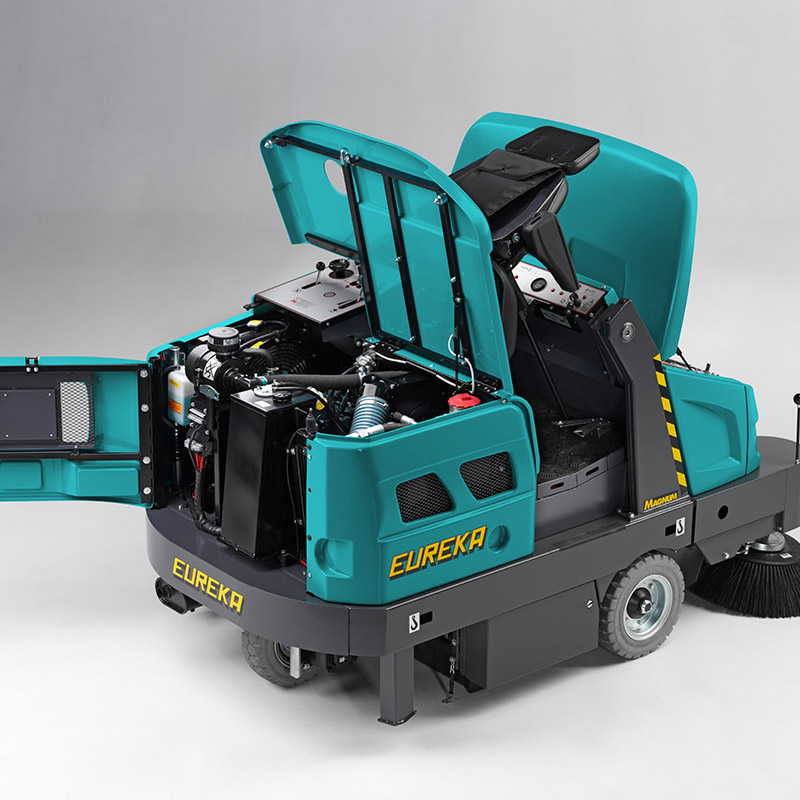

- LOW OPERATIONAL COSTS User-friendly operation reduces time and cost of training, simple maintenance and high reliability lower running costs.
AVAILABLE VERSIONS :
MAGNUM HDK with water cooled, three cylinder Kubota diesel engine
MAGNUM HGK LPG with dual LPG/petrol drive
MAGNUM EB EVO battery driven, 36 V
FIELDS OF APPLICATION
Industrial sites, communities and vicinities, schools, offices, religious buildings, hospitals, public buildings, airports, ports, shopping malls, logistical depots, cleaning companies, and multi services.
SUITABLE CLEANING SURFACES
Ceramics, marble, cement/concrete, linoleum, non-slip surfaces, porcelain tiling, and many other dirty conditions.
|TECHNICAL SPECIFICATIONS||HDK (diesel)||HGK LPG (gas)||EB EVO (battery)|
|Sweeping path with 2 side brushes||1.560 mm||1.560 mm||1.560 mm|
|Sweeping path with 1 side brush||1.250 mm||1.250 mm||1.250 mm|

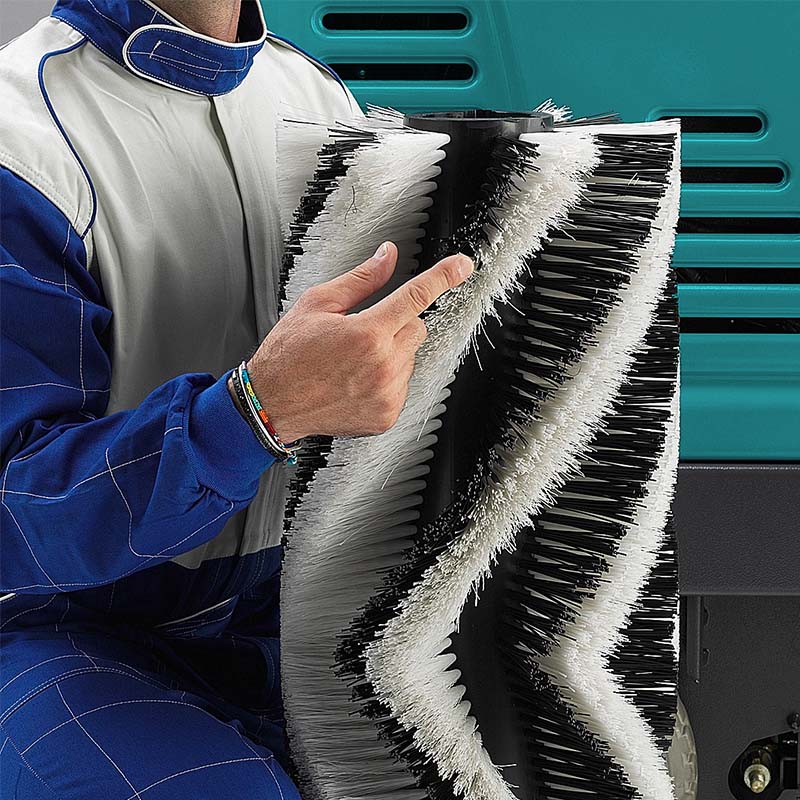

|Sweeping path only main brush||902 mm||902 mm||902 mm|
|Capacity of dirt container||236 L||236 L||236 L|
|Dumping height, hydraulic lift||1.540 mm||1.540 mm||1.540 mm|
|Forward speed||12,00 km/h||11,50 km/h||8,8 km/h|
|Cleaning capacity||18.720 m²/h||17.940 m²/h||13.730 m²/h|

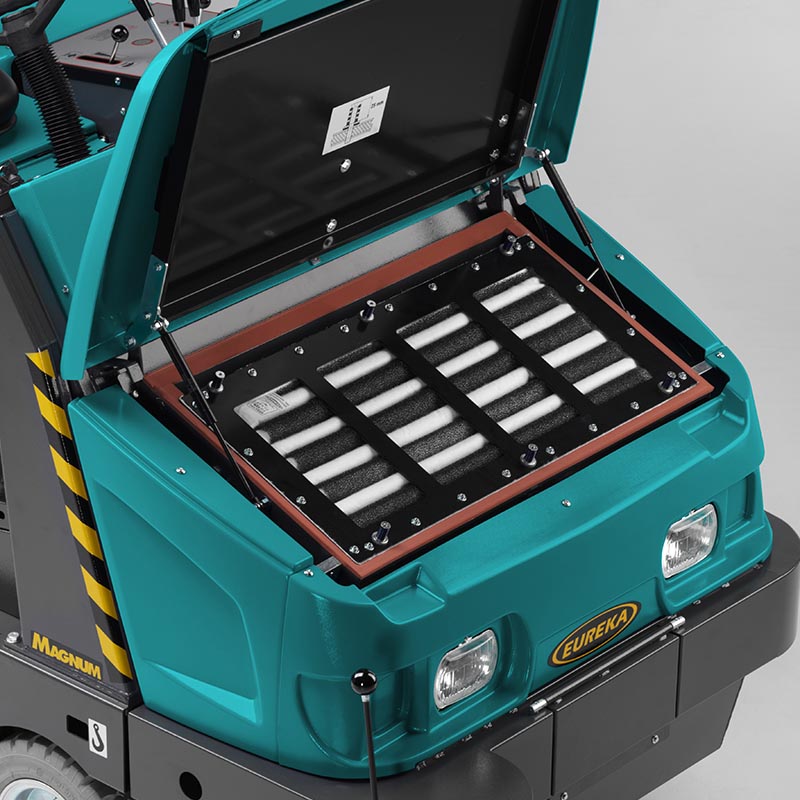

|Filter type||polyester bag filter||polyester bag filter||polyester bag filter|
|Drive motor||hydraulic||hydraulic||with electronic control (2.200 W)|
|Main motor||Diesel Kubota 20.6 Hp||Petrol, Kubota 29.5 Hp + Gas GPL||1 x 36 V - 1.800 W|
|Battery system||-||-||36 V|
|Weight||1.175 kg||1.163 kg||1.386 kg (with battery)|
|Size (with brushes) (l x w x h)||1.540 x 2.420 x 1.900 mm||1.540 x 2.533 x 1.900 mm||1.540 x 2.420 x 1.900 mm|
