The dry cycle, removes and vacuums small stones, dust, sand, and other small objects that can damage the internal mechanisms of an escalator.
EC52 | Escalator and travelator cleaner
The EC52 cleans escalators and moving walkways using both a dry and wet cleaning cycle. It is ideal for both everyday cleaning and to remove engrained dirt and heavier marks.

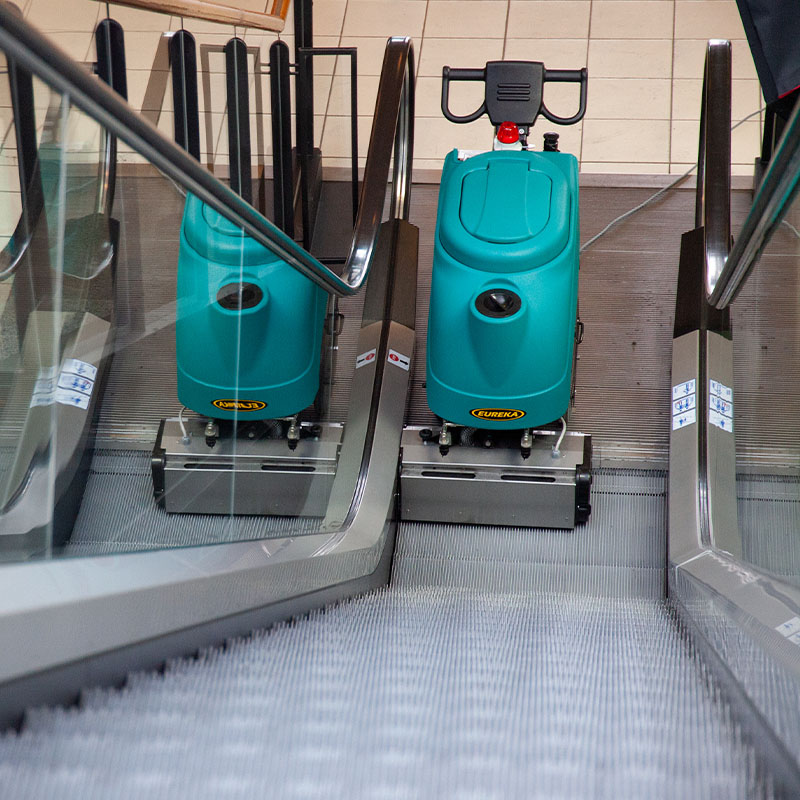

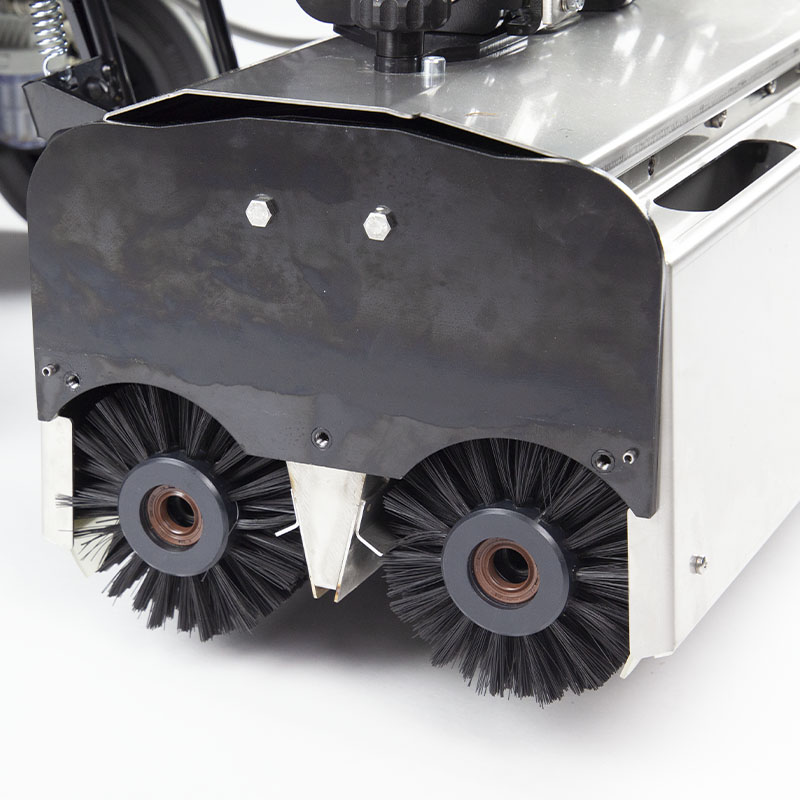

The revolutionary double brush system guarantees results and once in position, the EC52 works automatically, leaving the operator free to dedicate their time to other tasks.

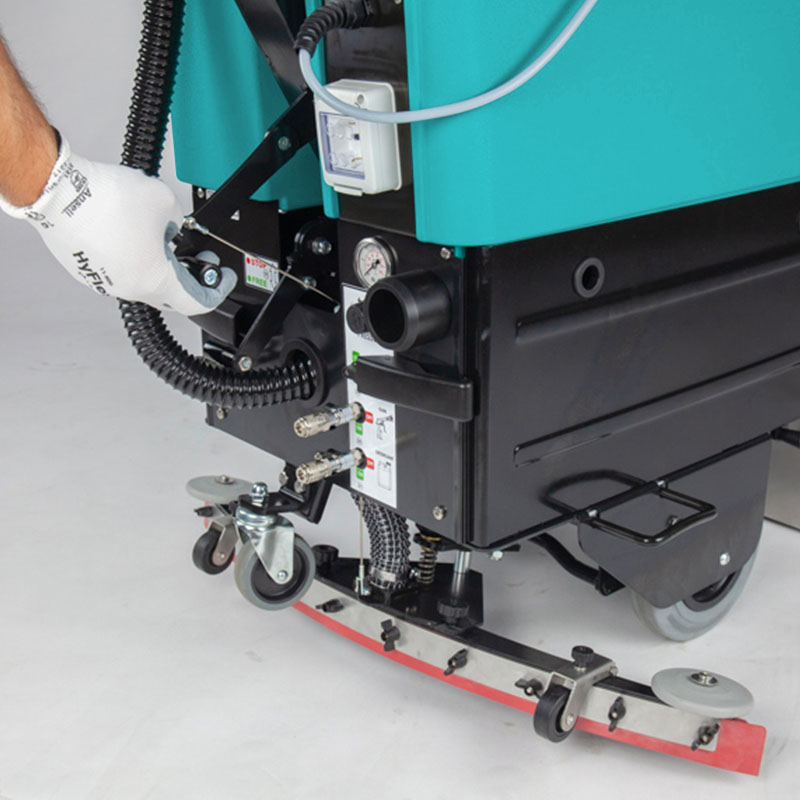

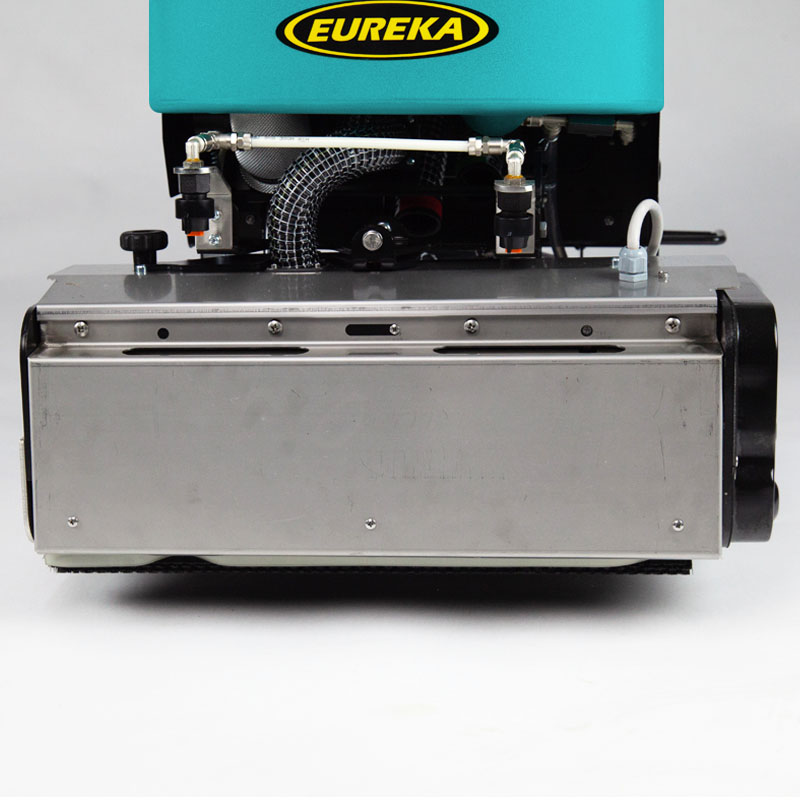

The new stainless-steel vacuum chamber, furthermore maximizes pick up of water, leaving the steps clean and dry.

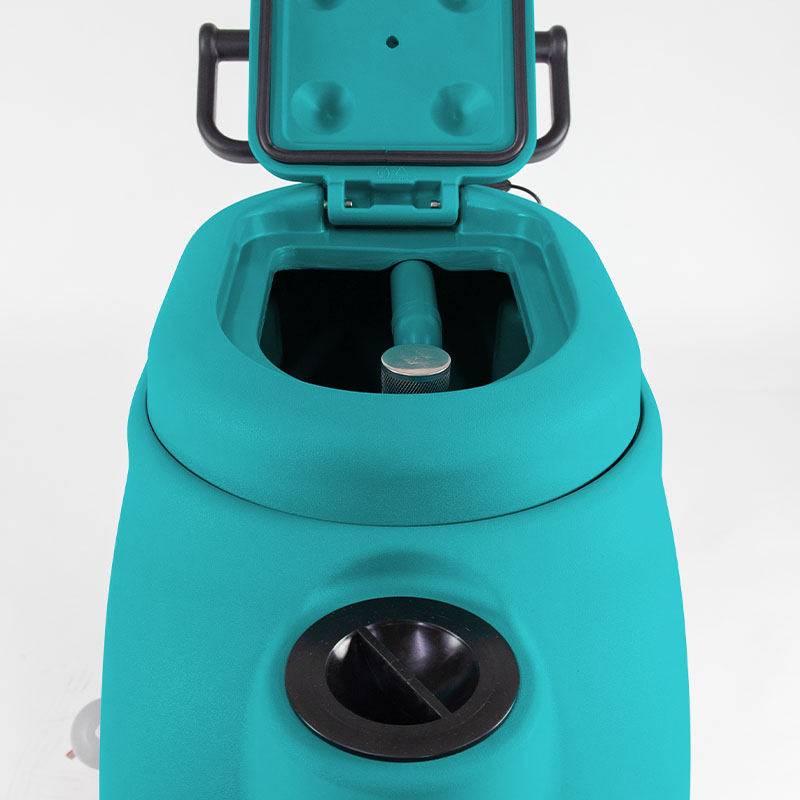

The new solution and recovery tanks, with greater capacity, provide more cleaning time, reducing the need to stop and refill during operation and eliminating associated downtime.
The EC52 cleans escalators and moving-walkways, of any brand, with a width of 51cm or greater. It isn’t necessary to stop the escalator to clean with the EC52, and a cleaning cycle is completed in a matter of minutes.

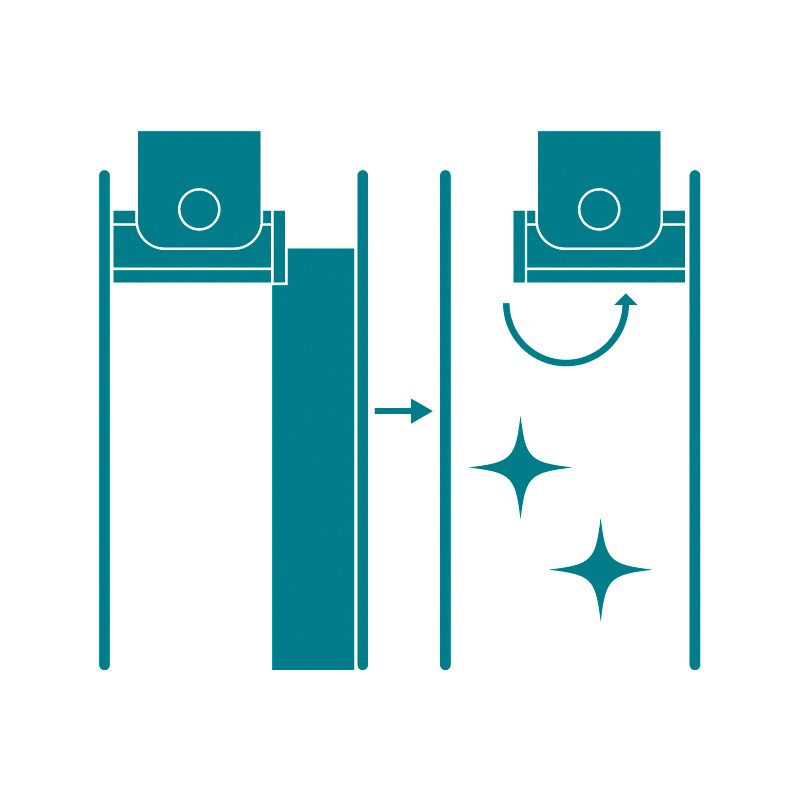

Edge2Edge® technology guarantees perfect cleaning even at the edges of the steps. The brush deck, which rotates 180 degrees, is fitted with thin spacers, allowing it to be placed in direct contact with the escalator’s side panel.

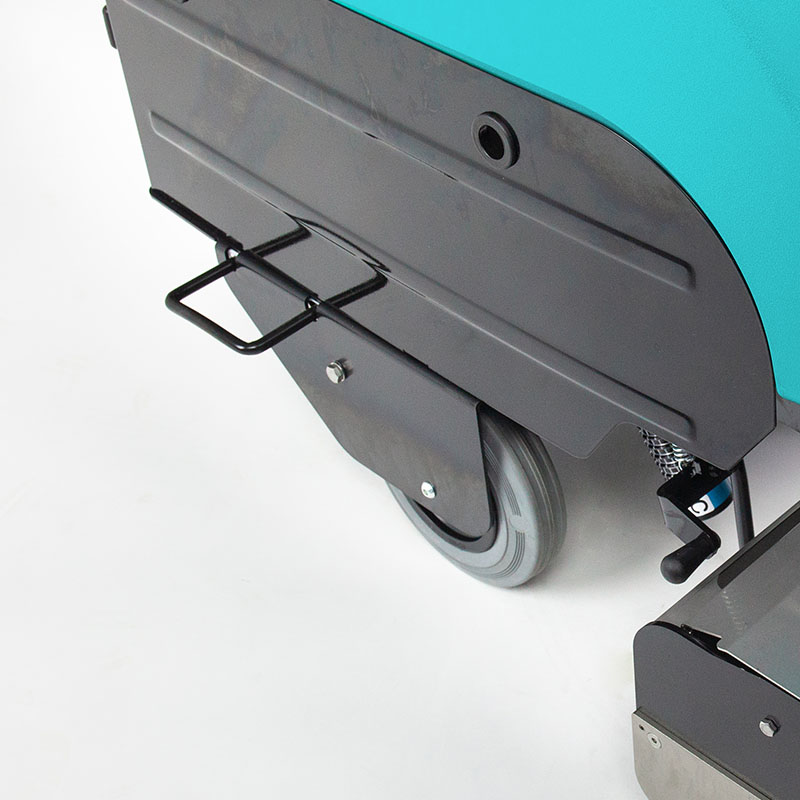

Despite the multiple functions and high performance offered by the EC52, it remains a compact machine, making it easy to transport on its wheels and to be lifted via the pull-out handles.
Commercial centers, multistory car parks, subway systems, stations, airports, casinos, hotels and resorts, public and private buildings, supermarkets, theme parts, cruise ships, museums…
Escalators, travellators, moving walk ways, moving sidewalks, horizontal escalators, and small floor areas.
|Cleaning path||510 mm|
|Hourly performance||1.000 m²/h|
|Solution tank capacity||35 L|
|Recovery tank capacity||35 L|
|Motor||230 V / 50-60 Hz|
|Brush motor||900 W|
|Vacuum motor||1.200 W|
|Water pick-up||2.100 mm H2O|
|Brush diameter||115 mm|
|Squeegee length||780 mm|
|Brush speed||400 rpm|
|Brush pressure||30 kg|
|Weight - without brushes||109 kg|
|Dimensions – without squeegee (l x w x h)||1200 x 580 x 920 mm|
