Xtrema - industrial floor sweeper
XTREMA - A COMPACT, 100% HYDRAULICALLY CONTROLLED, HIGH DUMP SWEEPER DESIGNED AND MANUFACTURED BY EUREKA
MANEUVERABILITY: The Xtrema is a compact ride-on sweeper, with a small turning radius (1.600 mm) which makes it particularly suitable for sweeping in narrow, confined areas and can easily adapt to both industrial and commercial situations.
POWER: The Xtrema is a 100% hydraulic sweeper able to climb even 20% gradients, while the powerful Kubota engine has efficient world-wide assistance. In addition the robust material, twin cylinders and liquid cooled system ensure high quality performance, and longer lasting life.
COMPLETE DEBRIS PICK-UP: Eureka has designed an exclusive 3 section, integrated bristle brush in order to perfectly clean all kinds of surfaces. The main brush floats for better performance, automatically adjusting itself to the floor conditions.

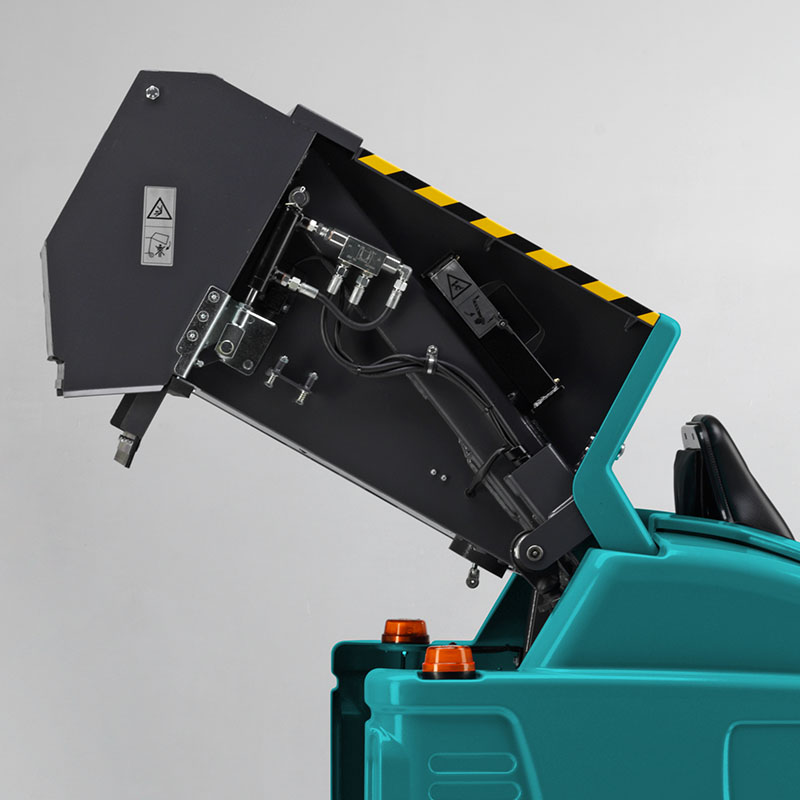

The multi-level-dump hopper located at the rear of the machine, is completely hydraulic and can be raised up to 1.360 mm from the floor, for easy emptying. The hopper has an impressive 150 litre capacity.
The main brush can be rapidly replaced without tools. The dust filter can be replaced in a few seconds. All parts, motors, engines etc. are easily accessible for servicing, as side, upper and rear panels can be fully opened.

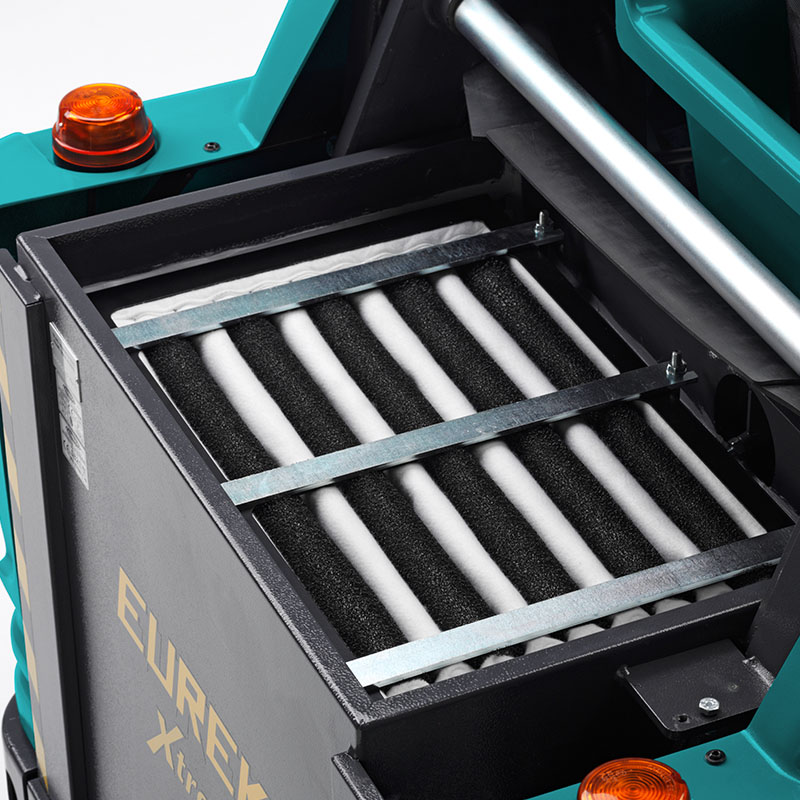

Xtrema is equipped with a polyester bag filter which is particularly efficient for the retention of fine dust, and has a much longer lasting life than other traditional filters. The shaker enables extreme cleaning of the filter without the need for removal.
Strong hydraulic drive system, variable speed of up to 9 Km/h, controlled by two pedals (forward & reverse).
Easy to use controls enable the operator to focus on sweeping, ensuring the job is done rapidly and efficiently.
The operator can simply adjust the brush pressure while working via a precise control positioned on the dashboard.
AVAILABLE VERSIONS
- XTREMA HDK with liquid cooled, twin cylinder diesel engine
- XTREMA EB battery powered, 24V
FIELDS OF APPLICATION
Industrial sites, communities and vicinities, schools, offices, religious buildings, hospitals, public buildings, airports, ports, shopping malls, logistical depots, cleaning companies, and multi services.
SUITABLE CLEANING SURFACES
Ceramics, marble, cement/concrete, linoleum, non-slip surfaces, porcelain tiling, and many other dirty conditions...
| TECHNICAL SPECIFICATIONS | XTREMA EB | XTREMA HDK |
|---|---|---|
| Sweeping path with side brush | 1.400 mm | 1.400 mm |
| Sweeping path only main brush | 800 mm | 800 mm |
| Capacity of dirt container | 150 kg | 150 kg |
| Dumping height, hydraulic lift | 1.360 mm | 1.360 mm |
| Forward speed | 8,00 km/h | 9,00 km/h |
| Cleaning capacity | 11.200 m²/h | 12.600 m²/h |
| Filter type | polyester bag filter | polyester bag filter |
| Drive | electronic assisted | hydraulic |
| Drive motor | 24V - 900W | Kubota 14 hp |
| Main motor (Quantity, V, W) | 1 x 24V - 2.000W | hydraulic |
| Battery system | 1 x 24V | - |
| Weight | 920 kg (with batteries) | 785 kg |
| Size (with brushes) (l x w x h) | 1.400 x 1.695 x 1.480 mm | 1.400 x 1.695 x 1.480 mm |
